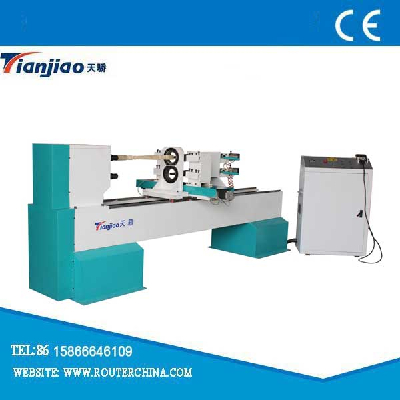

double axis four cutter automatic cnc woodworking copy turning lathe

double axis four cutter automatic cnc woodworking copy turning lathe

  • Min.Order Quantity: 1 Set
  • Supply Ability: 500 Sets per Month
  • Port: qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2009-02-19
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  6.5
  • Place of Origin:  Jinan
  • Brand Name:  TianJiao
  • Model Number:  TJ1516
  • Weight: 1500.000 kg

double axis four cutter automatic cnc woodworking copy turning lathe

1. cast iron machine body, machine weight 1500kgs,more stable for rotating work.

2. power coating, longer time to stay.

3. DSP control system, more easy to allign cutter. also can supply NC screen control system.---MCK300A

4. standard working size 1500mm length, 160 mm diameter,

other length 2000/2500/3000mm can be customed, diameter max can make 200mm for double axis wood lathe.

5. can make double axis, double working efficiency, can add spindle for engraving and broaching work,

can be single axis too.



  • Size:  6.5
  • Place of Origin:  Jinan
  • Brand Name:  TianJiao
  • Model Number:  TJ1516
  • Weight: 1500.000 kg

Cnc wood lathe TJ1516 double axis double knife

     Item

                   Specifications

Max processing length

1500mm(can custom 2000/2500/3000mm)

Max turning diameter



Double shaft use max 160mm

Single shaft use max 320mm

Air pressure

0.6-0.8Mpa

Powersupply

AC 380V 3 phase 50HZ/60HZcan custom 220V

Max feed rate

200cm/min

min setting unit

0.01cm

Transimission type

ballscrew for X Z axis,gear for Y axis

Guider

Taiwan Hiwin orbit

Main shaft rotating speed

0-3000r/min

Motor power

4kw

Spindle motor

3.5kw air cooling spindle

Cutter material

Super hard alloy

Control System

DSP control system

Motor

Stepper motor

Driver

Yako driver

Inverter

Best inverter

Drawing Software

AutoCAD

Hand controller recognise file format

*.dxf

Machine size

3*1*1.4m

Packing size

3.1*1.2*1.6

N.W

1500kg

G.W

1600kg

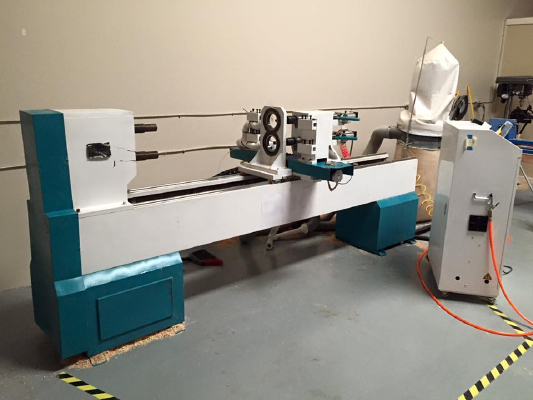

1500mm cnc automatic wood turning copy lathe for sale

size

max length

mm

1500mm

max diameter

mm

160mm

min diameter

mm

20

Main performance parameters

Main spindle rotating speed

r/min

3000

3 phase induction motor power

kw

4

max feeding speed

cm/min

200

other parameter

voltage

v

380

weight

kgs

1500

package size

m

3.1*1.2*1.6
