- Size: 6.5
- Place of Origin: Jinan
- Brand Name: TianJiao
- Model Number: TJ1530
- Weight: 1500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :

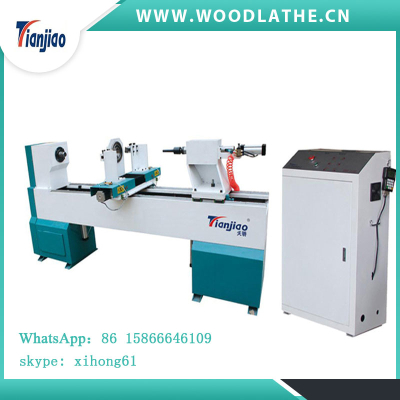

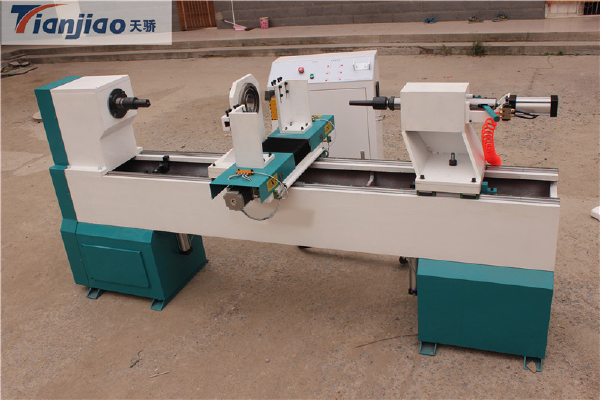

2016 Hot sale cnc woodworking turning lathe machine
1. cast iron machine body, machine weight 1500kgs,more stable for rotating work.
2. power coating, longer time to stay.
3. DSP control system, more easy to allign cutter. also can supply NC screen control system.---MCK300A
4. standard working size 1500mm length, 300 mm diameter,
other length 2000/2500/3000mm can be customed, diameter max can make 400mm.
5. can make double axis, double working efficiency, can add spindle for engraving and broaching work,
- Size: 6.5
- Place of Origin: Jinan
- Brand Name: TianJiao
- Model Number: TJ1530
- Weight: 1500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
Item | Specifications |
Max processing length | 1500mm(can custom 2000/2500/3000mm) |
Max turning diameter | 300mm |
Air pressure | 0.6-0.8Mpa |
Powersupply | AC 380V 3 phase 50HZ/60HZ(can custom 220V) |
Max feed rate | 200cm/min |
min setting unit | 0.01cm |
Transimission type | ballscrew for X Z axis,gear for Y axis |
Guider | Taiwan Hiwin orbit |
Main shaft rotating speed | 0-3000r/min |
Motor power | 4kw |
Cutter material | Super hard alloy |
Control System | DSP control system |
Motor | Stepper motor |
Driver | Yako driver |
Inverter | Best inverter |
Drawing Software | AutoCAD |
Hand controller recognise file | *.dxf |
Machine size | 3*1*1.5m |
Packing size | 3.15*1.25*1.6 |
N.W | 1500kg |
G.W | 1600kg |
